DINTEK Pass Through ezi-Plug™ Crimp Tool

Description
The DINTEK Pass Through ezi-Plug™ crimp tool combines the performance advantage of DINTEK design with a design which allows the termination of pass through RJ45 connectors. This high quality ratcheting crimp tool is designed to quickly crimp and cut the wires of the ezi-Plug™ RJ45 Connector… in one easy simple operation! This tool is manufactured from high-strength steel and includes a convenient wire cutter in the handle.
-
Terminating stranded and solid pass through RJ45 plugs
-
1000BASE-TX Gigabit Ethernet 550MHz Broadband Video
-
10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)
-
Voice, T1, ISDN
-
100 VG – AnyLAN (IEEE802.12), 155/622 Mbps ATM
-
PoE++ & 4PPoE – iEEE 802.3bt level 3 & 4
Features
-
Crimps and trims extended wire in ezi-Plug™ RJ45 Connectors in a single cycle.
-
For use with ezi-Plug™ RJ45 Cat 5e and Cat 6 Connectors.
-
Straight action crimping motion for the most reliable and consistent terminations.
-
Crimping dies are precision ground from high carbon steel.
DINTEK Premium RJ45 Crimp Tool

Description
This modular crimping tool makes terminating communications cabling plugs easy. As an all-in-one tool, it lets you easily terminate RJ45, RJ12 and RJ11 plugs with paired-conductor cables for voice and data applications. Trim and strip cords with precision in one motion, for consistent, high quality connections.
The tool includes two crimping slots suitable for 6 and 8 position modular plugs. It features a heat-treated carbon steel frame with black oxide finish for superior durability, a safety blade guard, and comfort grip handles that helps reduce fatigue.
Applications
-
Terminating stranded and solid wire cables
-
Terminating RJ11, RJ12 Telecoms Style Plugs
-
Terminating RJ45 Data Communications Plugs
Features
-
Works With Solid & Stranded style cables
-
Heat-treated steel frame
-
Black oxide finish for superior durability
-
High quality ratchet action
-
Safety blade guard
-
Comfort grip handles that help reduce fatigue

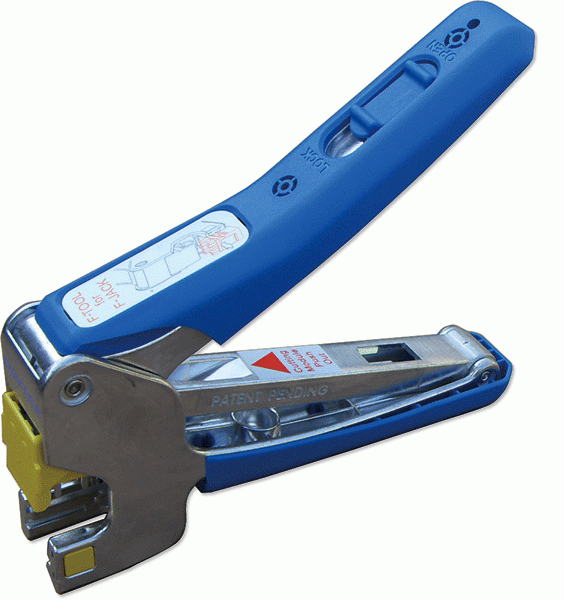

DINTEK ezi-TOOL180 - Vertical Tool

Description
The DINTEK ezi-TOOL180™ system is an all-in-one punch down and wire trim process, design to assure even connections, better performance and faster fit off times. The ezi-TOOL180™ is for use with 180degree Cat5e, Cat6 and Cat6A modular keystone jacks
Applications
-
Premise wiring
-
Cable assemblies
-
For use in DINTEK Cat6A, Cat6 or Cat5e Installations
-
Standardize connections on IDC
-
Features
-
Vertical and Horizontal Jack versions available
-
All-in-one Punch down of 8 wires
-
Even wire trim process
-
Maintains gas tight IDC connections
-
Minimizes return loss & cross talk
-
Multi use Keystones, can be used in Ezi-Tool and also standard punch down tool
-
Benefits
-
Maintains gas tight IDC connections
-
Insertion Loss reduction
-
Removes risk of insulation and/or keystone jack damage
-
Multi use ezi-JACKS, can be used in ezi-TOOL and also standard punch down tool
-
Wires pushed down over IDC instead of impact 110 style
-
Removal of impacting to terminate improves return loss and cross-talk at termination points
-
Less termination failures and better overall bandwidth for customer

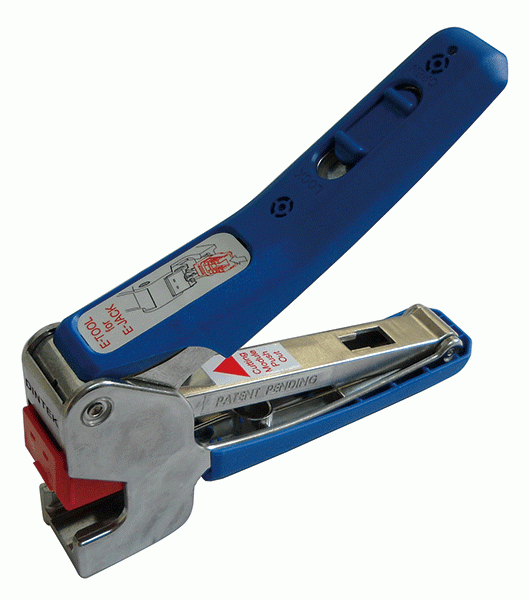

ezi-TOOL90 – Horizontal Tool

Description
The DINTEK ezi-TOOL90™ system is an all-in-one punch down and wire trim process, design to assure even connections, better performance and faster fit off times.
The ezi-TOOL90™ is for use with horizontal Cat 5e, Cat 6 and Cat 6A modular keystone jacks
Applications
-
Premises wiring
-
Cable assemblies
-
For use in DINTEK Cat 6A, Cat 6 or Cat 5e Installations
-
Standardise connections on IDC
Features
-
Vertical and Horizontal Jack versions available
-
All-in-one Punch down of 8 wires
-
Even wire trim process
-
Maintains gas tight IDC connections
-
Minimises return loss & cross talk
-
Multi use Keystones, can be used in Ezi-Tool and also
-
standard punch down tool
Benefits
-
Maintains gas tight IDC connections
-
Insertion Loss reduction
-
Removes risk of insulation and/or keystone jack damage
-
Multi use ezi-JACKS, can be used in ezi-TOOL and also standard 110 punch down tool
-
Wires pushed down over IDC instead of impact 110 style
-
Removal of impacting to terminate improves return loss and cross talk at termination points
-
Less termination failures and better overall bandwidth for customer

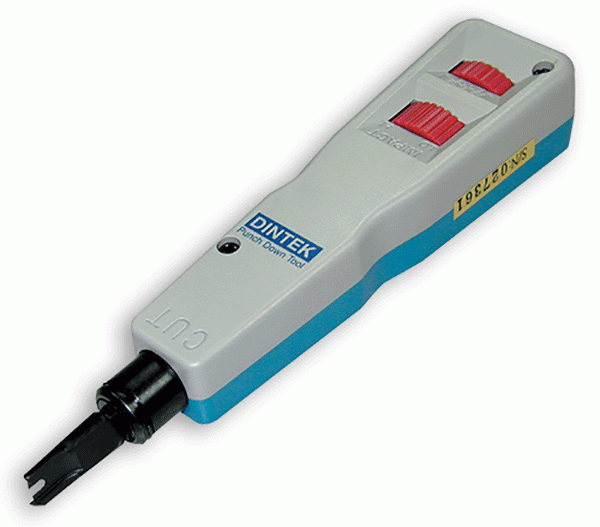

DINTEK 110 Punchdown Termination Tool

Description
If you’re going to be terminating our RJ45 jacks without the use of the ezi-TOOL , or you need to terminate wires onto a 110 block, you’re going to need a good punch down tool. DINTEK’s Single wire 110 Punchdown tool allows for the best possible termination via the 110 impact system on to IDC terminations.
Applications
-
Terminating wires onto 110 style block connectors
-
Terminating Category 3 twisted pair RJ45 voice jacks
-
Terminating Category 5e & Category 6 RJ45 Jacks
Features
-
Suitable for 110 cross-connect systems
-
Suitable for punch and cut or punch only
-
Compact body for easy storage in your tool box, tool bag, or pocket
-
Spring-loaded design provides a low-effort wire seating & termination
-
Internal impact mechanism eliminates jamming
-
In-handle blade storage compartment
-
Uses standard twist and lock 110 blades for terminations
DINTEK Continuity Twin-Testers

Description
The DINTEK twin tester provides instant identification of most common voice and data cabling problems including shorts, opens, reversals, and incorrect polarity. The master and remote units separate for end-to-end testing of installed cabling or work separately as independent patch cord test units. Both pieces simply snap and lock together when not in use, making it easy to carry and store. Designed to fit neatly into a toolbox or pocket, the UTP tester has a convenient ‘ring’ feature for attaching to a belt or frame. The UTP tester should be used to check each channel from the station device to the system.
Technical Specification
-
Materials: ABS
-
Distance: 1,000m (3,280ft)
-
Power requirements: 9 volt battery(standard or alkaline)
-
Weight: 240g (9 oz.)
-
Built-in interface: USOC,EIA 568B
-
Contact specification: 30 u” gold over nickel
Features
-
Innovative 2-in-1 design
-
Features modular jacks for testing USOC and 568A/B cabling systems
-
Accurately verifies the continuity and sequence of 1-,2-,3-, & 4-pairs
-
Continuously-sequencing LED display provides a diagnostic readout
-
Immediately detects shorts, opens, reversals, and mis-wires
-
Simple snap and lock master and remote unit design
-
Ergonomically designed hand-held unit
-
Light weight, rugged, and impact-resistant
-
Requires 9 volt alkaline battery (not included)
