DINTEK Patch Leads, Panels & Wallplates

POWERMAX™: Gigabit High Speed Ethernet

Description

DINTEK PowerMAX™ Category 6 Patch Cords are specifically designed to support high speed data networks for 1000mb applications, and are fully tested to meet TIA/EIA Category 6 channel requirements.

The patch cables are made from high quality shielded 4 pair 24AWG stranded wire.

DINTEK PowerMAX™ Category 6 Patch Cords are pre-terminated with RJ45 plugs and feature anti-snag strain relief boots. DINTEK recommends the entire range of PowerMAX™ UTP products be used in a end-to-end system to maximize cabling performance.



Applications

  • Patch panel to patch panel connections

  • PC to information outlet connections

  • Information outlet to telecommunications closet connections

  • Equipment & DTE connections

Standards

  • UL Verified

  • ISO/IEC11801 2nd edition

  • ANSI/TIA Standard 568-C.2

  • CENELEC EN 50173



POWERMAX+™ : Cat 6A 10 Gigabit High Speed Ethernet

Description

This modular crimping tool makes terminating communications cabling plugs easy. As an all-in-one tool, it lets you easily terminate RJ45, RJ12 and RJ11 plugs with

Cat 6A 4 Pair F/UTP Patch Cord LSZH

DINTEK PowerMAX+™ Foil Wrapped UTP Patch Cords, are key components of the PowerMAX+™ F/UTP end-to-end solution.

DINTEK PowerMAX+™ F/UTP Patch Cords are specifically designed to support high speed data networks for 10-Gigabit Ethernet applications, and are fully tested to meet ANSI/TIA-568.2-D Category 6A channel requirements. The patch cables are made from high quality shielded 4 pair 26AWG stranded wire.

DINTEK PowerMAX+™ patch cords are pre-terminated with RJ45 shielded plugs and feature anti-snag strain relief boots. DINTEK recommends the entire range of PowerMAX+™ Shielded products be used in a end-to-end system to maximize cabling performance.

  • 26AWG stranded wire provides maximum flexibility.

  • Brilliant colors make management a snap

  • Fully tested to meet ANSI/TIA-568.2-D category 6A channel requirement.

  • The various colors are available to meet TIA/EIA-606 standards.

  • The mechanical characteristics and transmission performance meet 16Mbps Token Ring, 10Base-T, 100Base-T, 155Mbps, 622Mbps ATM, Gigabit-Ethernet, 1.2Gbps ATM and 10G Ethernet requirements.

Applications

  • 10GBASE-T Ethernet

  • 100BASE-TX Fast Ethernet

  • 1000BASE-TX Gigabit Ethernet

  • 1000BASE-T Gigabit Ethernet

  • 10BASE-TX Ethernet

  • ATM CB1G

  • 155/622 Mbps ATM

  • 100 Mbps TP-PMD

  • 100VG-AnyLAN

  • 4/16 Mbps Token Ring

  • Voice

Standards

  • UL Listed

  • Meet Cat 6A channel performance requirements in ANSI/TIA-568.2-D

  • CENELEC EN 50173-1, CENELEC EN 50288-10-1 for horizontal cable

  • ISO/IEC 2nd Edition 11801 Class EA

POWERMAX+™ : Cat 6A 10 Gigabit High Speed Ethernet (1305-05010)

Description

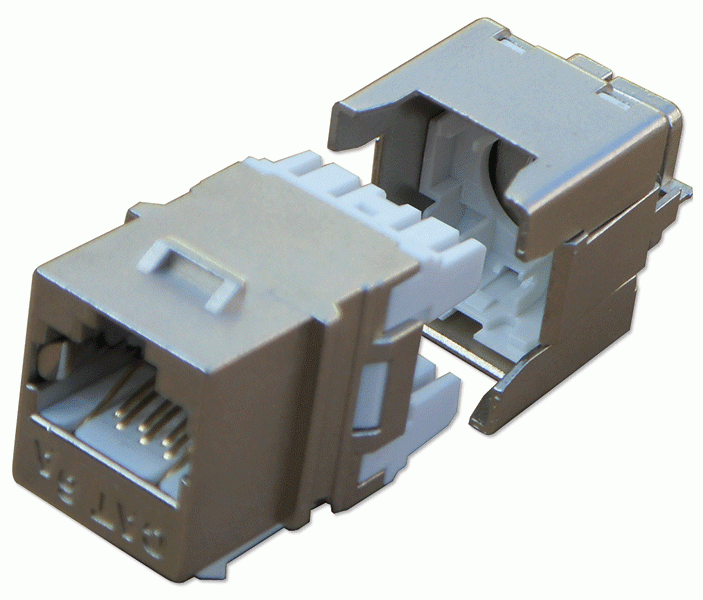

Cat 6A Fully Shielded horizontal ezi-JACK180™ T568A/B, white Component level

DINTEK PowerMax+™ Cat 6A Fully Shielded ezi-Jack180™ offers superior alien crosstalk suppression, excellent insertion loss, and provides enhanced electromagnetic interference (EMI) protection by utilizing robust die cast  zinc alloy connector body housing. The shielded connector is dual color coded for either 568A or 568B wiring schedules. Being specifically designed for high-speed data transmission, the DINTEK PowerMax+ Cat 6A Fully Shielded ezi-Jack180™ is also backwards compatible with Shielded Cat 6 and Cat 5e systems.

  • 26AWG stranded wire provides maximum flexibility.

  • Brilliant colors make management a snap

  • Fully tested to meet ANSI/TIA-568.2-D category 6A channel requirement.

  • The various colors are available to meet TIA/EIA-606 standards.

  • The mechanical characteristics and transmission performance meet 16Mbps Token Ring, 10Base-T, 100Base-T, 155Mbps, 622Mbps ATM, Gigabit-Ethernet, 1.2Gbps ATM and 10G Ethernet requirements.

Applications

  • 10GBASE-T Ethernet

  • 100BASE-TX Fast Ethernet

  • 1000BASE-TX Gigabit Ethernet

  • 1000BASE-T Gigabit Ethernet

  • 10BASE-TX Ethernet

  • ATM CB1G

  • 155/622 Mbps ATM

  • 100 Mbps TP-PMD

  • 100VG-AnyLAN

  • 4/16 Mbps Token Ring

  • Voice

Standards

  • UL, C(UL), ETL Verified

  • ISO/IEC11801 2nd edition

  • ANSI/TIA Standard 568-C.2

  • CENELEC EN 50173

PowerMAX™ : Gigabit High Speed Ethernet

Description

Cat 6 Horizontal Type Keystone ezi-Jack, T568A/ B, White

The DINTEK PowerMAX™ Category 6 solutions are guaranteed to exceed Class E channel specifications as set down in International standards.

If it’s speed that you’re after, then look no further than the DINTEK PowerMAX™ Category 6 Modular Jacks.

DINTEK Cat6 Jacks provide performance that exceeds category 6 connecting hardware performance specifications. They also ensure backwards compatibility with components and systems of lower performing categories. DINTEK Installers and end users benefit from the ease of install and use, and with their compact design they are good for high density situations. For example, up to six modules can be utilized in a single faceplate. Combined with other DINTEK PowerMAX™ products, they are the perfect solution to your voice and data communications needs.

  • 26AWG stranded wire provides maximum flexibility.

  • Brilliant colors make management a snap

  • Fully tested to meet ANSI/TIA-568.2-D category 6A channel requirement.

  • The various colors are available to meet TIA/EIA-606 standards.

  • The mechanical characteristics and transmission performance meet 16Mbps Token Ring, 10Base-T, 100Base-T, 155Mbps, 622Mbps ATM, Gigabit-Ethernet, 1.2Gbps ATM and 10G Ethernet requirements.

Applications

  • UL Verified

  • ISO/IEC11801 2nd edition

  • ANSI/TIA Standard 568-C.2

  • CENELEC EN 50173

Standards

  • UL Verified

  • ISO/IEC11801 2nd edition

  • ANSI/TIA Standard 568-C.2

  • CENELEC EN 50173

DINTEK 1U 24P UTP SNAP-IN Panel

Description

The DINTEK 1U 24 Port UTP patch panel, provides for fast and reliable installation by accelerating module mounting times, and cable tie-down operations.

The panel is designed to accept the DINTEK PowerPRO™ & PowerMAX™ Unshielded keystones which snap in place easily. The unique construction provides a finished product that looks like a standard modular patch panel, yet takes advantage of using ezi-JACK keystones and quick terminating tools.

The patch panel is compatible with both PowerPRO™ & PowerMAX™ Unshielded Keystone jacks.

  • UTP Snap-in type

  • The snap-in type panel is compatible with ezi-JACK™ Cat.5e & Cat.6 versions

  • Printed port number and white writing labeling

  • UL, ETL Listed

  • Can be purchased bundled with rear cable management

  • Optional 24 ezi-JACK keystone pack to fully load panel with

Applications

  • Voice; T1; ISDN

  • 10BASE-T (IEEE 802.3)

  • 16Mbps Token Ring (IEEE802.5)

  • 100VG-AnyLAN (IEEE802.12)

  • 100BASE-T Ethernet (IEEE802.3)

  • 155/622Mbps 1.2/2.4 Gbps ATM

  • 1000Mbps Gigabit Ethernet

  • 550MHz Broadband Video

POWERMAX+™ : Cat 6A 10 Gigabit High Speed Ethernet

Description

19″ Cat 6A FTP Snap-in type blank panel, with cable management, 1U 24P metal

The PowerMAX+™ STP patch panel, provides for fast and reliable installation by accelerating module mounting times, and cable tie-down operations. The panel is designed to accept the DINTEK PowerMAX+™ Cat 6A Shielded keystones which snap in place easily. The unique construction features provide the maximum in alien crosstalk reduction.

Compatible with DINTEK 10G Shielded Keystone jacks

  • Shell: Ninc alloy full shielded

  • PLATE: SPCC-SPCC 16G

  • FTP Snap-in type

  • Printed port number and white writing labeling

  • Cable manager

PowerMAX™ Cat 6 RJ45 Pass Through ezi-PLUG

Description

The DINTEK RJ45 Pass Through ezi-Plug (available for DINTEK RJ45 Cat6 Pass Through plugs) allows the wires to pass through the connector to be pulled snugly into place so that the twists in each pair can be maintained closer to the contacts compared to conventional plugs. Minimising untwisted pairs equals better performance. The DINTEK Pass Through Crimp tool both crimps and trims the excess wires simultaneously which also speeds up the termination of the RJ45 plug.

  • 1000BASE-TX Gigabit Ethernet 550MHz Broadband Video

  • 10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3) Voice, T1, ISDN

  • 100 VG – AnyLAN (IEEE802.12), 155/622 Mbps ATM

  • PoE++ & 4PPoE – iEEE 802.3bt level 3 & 4

Cat 6 inline block to block type unshielded coupler

Description

DINTEK’S Cat 6 block to block inline couplers are perfect for bridging two cables that may require extending or where damage to a cable necessitates repair without having to re-run a cable. Designed to mount onto existing (in ceiling) support structures these junction boxes are complete with two mounting cable ties. The units utilize two simple 110 punch-downs IDC blocks connected via a PCB to connect two cables.

  • Insulation Resistance : 500M ohms (min.)

  • Contact Resistance: 20m ohms (max.)

  • Current Rating : 1.5 Amps

  • DC Resistance: 0.1 ohms (max.)

  • Withstanding Voltage: 1000 VAC RMS@60Hz / 1 min.

  • IDC Punch Down Cycle : Over 250 cycles

  • Operation Temperature : -40 DC – + 70 DC

For more information:

P: 03 62727288

E: sales@localelectronics.com.au

A: 194A Main Road Moonah 7009 Tas

DURAMAX CAT.6A RJ45 FIELD TERMINATED PLUG

Description

As more and more industrial devices and appliances are controlled using connection to the IT Network, a more noise-tolerant and robust-structured modular plug is required compared to a common office LAN application plug. The plugs and cables must have a strong shielded structure to handle electrical noise and they must also be designed to work in harsh environments such as extreme temperatures, humidity or vibration.

The DINTEK DuraMAX+TM Industrial Grade Cat.6A RJ45 Field Plug has been designed for easy installation and field termination while being contained in a rugged package. The plug features a fully shielded die-cast housing, and is a highly durable Cat.6A compliant component. Effortless termination has been achieved using the ezi-CONNECTTM IDC system, which allows reliable and easy termination process without the need to strip the wires.

  • Cat.6A STP field termnination capability

  • Industrial Strength Body Casing

  • Compatible with Cat.6A component performance under (ANSI/TIA-568-2.D)

  • Fully shielded metal housing guarantees secure and reliable
    transmission performance

  • A fast and reliable termination helps save labor costs

DURAMAX360 - 4 WAY INDUSTRIAL CAT.6A RJ45 PLUG

Description

As more and more industrial devices and appliances are controlled using connection to the IT Network, a more noise-tolerant and robust-structured modular plug is required compared to a common office LAN application plug. The plugs and cables must have a strong shielded structure to handle electrical noise and they must also be designed to work in harsh environments such as extreme temperatures, humidity or vibration.



The DINTEK DuraMAX360TM Industrial Grade 4 Way Cat.6A RJ45 Field Plug has been designed for easy installation and field termination while being contained in a rugged package. The plug features a fully shielded die-cast housing, and is a highly durable Cat.6A compliant component. Effortless termination has been achieved using the ezi-CONNECTTM IDC system, which allows reliable and easy termination process without the need to strip the wires.
